DURATrayTM Cable Tray Systems

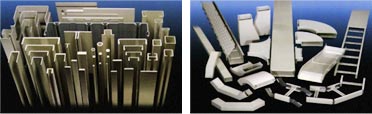

Since 1981, Dura Cable Tray Systems have been tested and proven in the harsh environment of the offshore oil and gas industry. Subject to the corrosive conditions inherent in petroleum products, plus the daily punishment of exposure to wind, weather and saltwater -- DURATrayTM has stood up! DURATrayTM Cable Tray gives you the load capacity of steel plus the inherent characteristics afforded by our in-house Pultrusion Technology: non-conductive, non-magnetic and corrosion-resistant. Although light in weight, their strength-to-weight ratio surpasses that of equivalent steel products. DURATrayTM Cable Tray Systems will not rust, nor do they ever require painting. Available in both polyester and vinylester resin systems, they are manufactured to meet BS 476 Part 6 and Part 7 Class 2 Flame Rating surface veil is applied during the pultrusion process to ensure a resin-rich surface for superior corrosion resistance as well as an ultraviolet exposure barrier. Cable Tray comes in three colors: Gray or blue (polyester resin) and Beige (vinylester resin). Custom colors are available on request.

Merits
• Corrosion Resistant
• Maintenance Free
• Non-conductive - UV Resistant
• High Strength/Lightweight
• Fire Retardant

The DuraTray (Type 1) system includes :

• cable trays (standard & perforated),
• covers,
• separation wall ,
• horizontal elbows,
• exterior & interior elbows,
• junction,
• and other accessories such as :
- endcap,
- cable rack,
- connector clip...

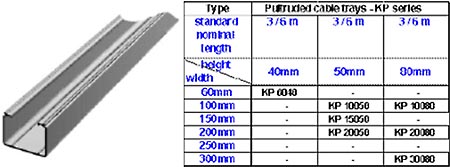

The range of cable trays

• fittings & accessories : on request !

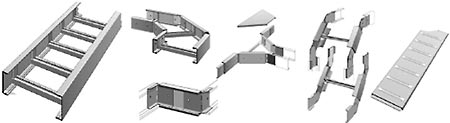

DURATray (Type II) Cable Ladder includes :

• cable ladders,
• covers,
• horizontal elbows,
• vertical elbows,
• junction,
• reducer right/left,
• and other accessories such as :
- connector plate,
- swivel joint,
- cover clip,
- clamp and screws

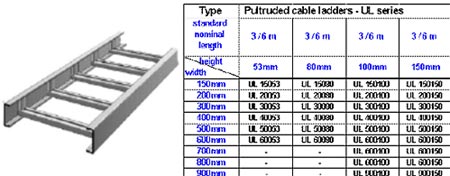

The range of Type II cable ladders

• fittings & accessories : on request !

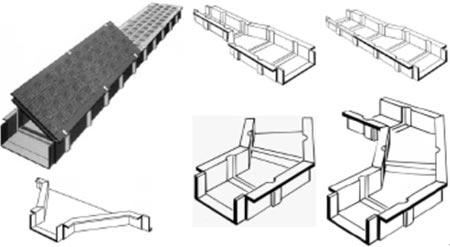

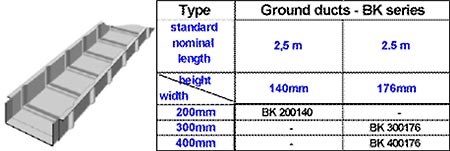

DURATray Type III ground ducts Series

• ground ducts,
• covers,
• horizontal elbows,
• junction,
• reducer right/left

• other dimensions, consult us
• fittings & accessories : on request !

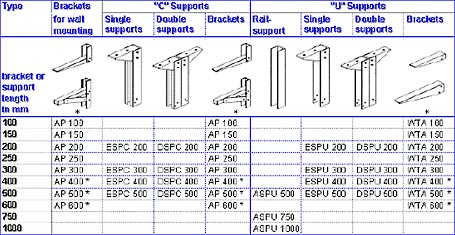

DURATray Type IV - GRP support systems

(glass reinforced polyester)

• For heavy duty support systems in GRP, please consult us !

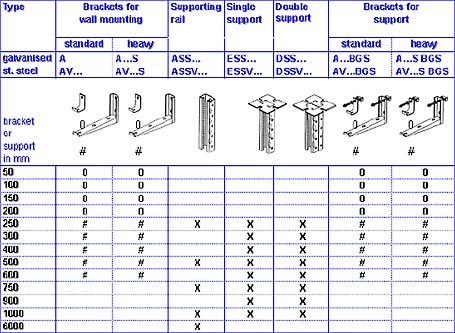

Metal support systems

(galvanised, stainless steel 316)
